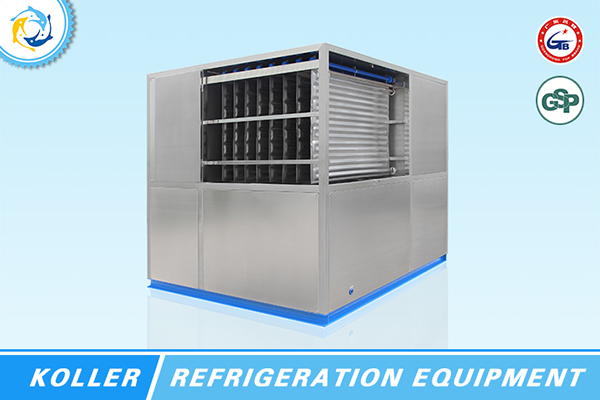

Simple Description
1. Plate ice thickness: 5-30mm, though the ice thickness can be adjusted based on customer needs
2. The machine uses an original German Bock compressor.
3. The plate ice machine also uses stainless steel 304 panels and a mainframe structure.
4. It comes with a Siemens PLC program control and touch screen.
| Model Item | PM200 | |
| Capacity (Tons/24hours) | 20 | |
| Refrigerant | R22/R404A | |
| Compressor Brand | Bitzer/Bock/Copeland | |
| Cooling Way | Water | |
| Compressor Power (HP) | 2×50HP | |
| Ice Cutter Motor (KW) | 1.5 | |
| Circulating Water Pump (KW) | 1.1×2 | |
| Cooling Water Pump (KW) | 5.5 | |
| Cooling Tower Motor (KW) | 2.2 | |
| Cooling Fan Motor (KW) | / | |
| Dimension | Length (mm) | 3950 |
| Width (mm) | 2200 | |
| Height (mm) | 2300 | |
| Weight (Kg) | 4500 | |
Koller PM Series Plate Ice Machine Technical Parameter:
1. Supply Power: 380V~420V, 50Hz, 3P; 220V~240V/380V, 60Hz, 3P; 440V~480V, 60Hz, 3P;
2. Working Conditions: Input Water Temp: 21℃, Condensing Temp: 25℃;
3. Koller reserves the final explanation to the product’s technique parameter, model and specifications can be subject to change without notice.
The above-mentioned parameter will be changed subject to technical innovation without further notice.
