Tube Ice Machine

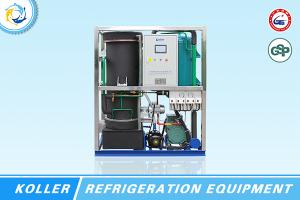

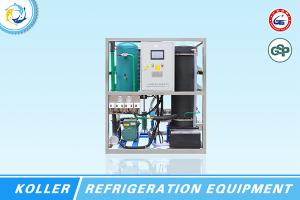

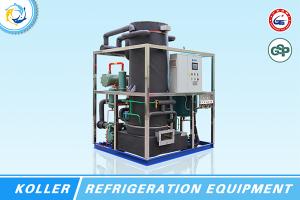

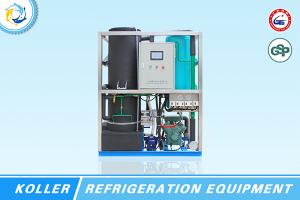

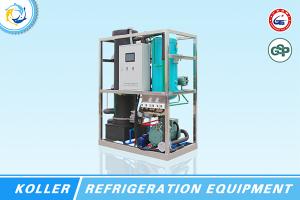

Koller Tube Ice Machine
1. Tube ice is a kind of hollow cylindrical ice with an external diameter of Ø20mm, Ø28mm, Ø34mm, Ø40mm and length 30mm, 35mm, 40mm, 45mm, 50mm. The hole diameter is usually ø5~10mm. It can be adjusted according to the ice making time.
2. Tube ice is beautiful, a little thick and transparent with long storage period. It has good air permeability and does not easily melt in a short period of time.
3. The tube ice machine has many uses especially for food, including conserving fresh vegetables and fresh aquatic products.
4. We use a PLC program control, which allows multiple functions such as automatic machine start and shutdown; automatic ice falling when the freezing time is ensured, and automatic water filling up.
5. The tube ice machine is composed of SUS304 for framework and evaporator for tube vessel, its top and bottom part is welded with quality joining.

Component List
Components List for Ice Cube Machine
Item Name of Components Brand Name Original Country
1 Compressor BITZER/BOCK/Frascold Germany/Italy
2 PLC Programmable Control SIEMENS Germany
3 Tube Ice Evaporator (SUS304) KOLLER China
4 Water Cooling Condenser XUEMEI China
5 Electrical Components LG South Korea
6 Refrigeration Components DANFOSS/CASTAL Denmark
7 Water Pump HAILONG China
8 Cooling Tower LINKO China
Working Instructions

Supply power: 380V, 50Hz, 3P or 220V~240V, 50Hz, 3P or 220~240V, 60Hz, 3P or 380V, 60Hz, 3P
Standard working conditions
Evaporating temp: -15 ℃;
Condenser temp: +40℃;
Ambient temp: 40℃;
Input supply water temp: 21℃;
Requirement for water: We usually use pure water to make ice, so that it can freeze and become transparent and crystal ice.
Refrigerant: R22 or R404a;

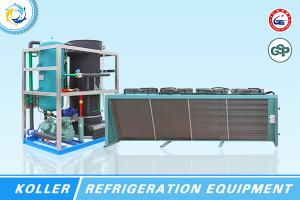

Cooling system: Water cooling system or air cooling system;
Specification and technical information can be subject to change without notice.
