2. Supply power: 380V-420V, 50Hz/60Hz, 3P; 220V-240V, 60Hz, 3P; 440V-480V, 60Hz, 3P
3. Working conditions: input water temp: 21ºC; evaporating temp: -10ºC; condensing temp: 40ºC
4. The final product techniques, parameters models, and specifications are subject to change without notice.
The above-mentioned parameter will be changed subject to technical innovation without further notice.

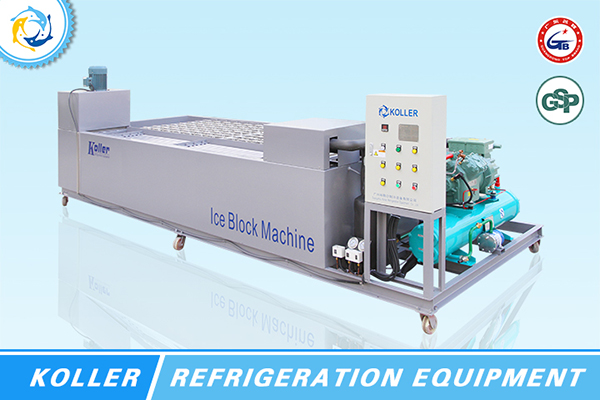

Koller MB Series Ice Block Machine Parameter:| Item Model | MB50 |
| Capacity (Ton/24h) | 5 |
| Cooling Way | Water |
| Compressor Brand (France/Germany/Italy) | Bitzer/Bock/ Frascold |
| Compressor Power (HP) | 25 |
| Circulating Water Pump (KW) | 4 |
| Cooling Water Pump (KW) | 2.2 |
| Cooling Tower Motor (KW) | 0.75 |
| Ice Size | 10kg |
| Machinery Unit Size (mm) | 1870×870×1730 |
| Brine Water Tank Dimensions (mm) |
