Working Conditions for Flake Ice Machine:
| 1. Max. Ambient temp. |
+400C |
| 2.Relative humidity |
60%~80% |
| 3.Power supply |
220V/50Hz/single phase |
| 4.Refrigerant |
R404a |
| 5.Compressor type |
full-hermetic compressor |
| 6.Cooling system |
air cooling condenser |

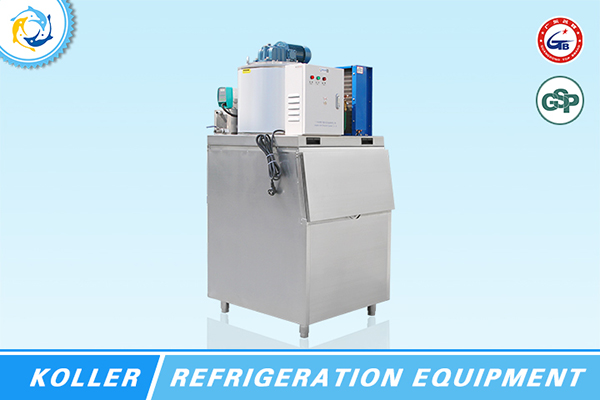

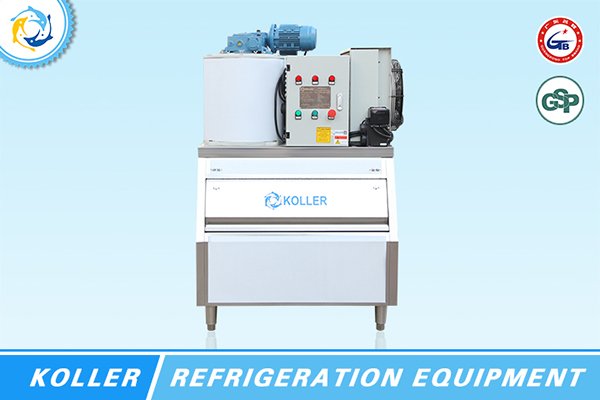

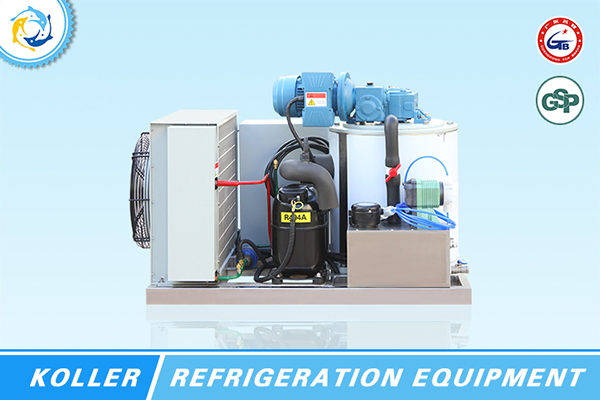

Technical Parameters for Flake Ice Machine KP02:
| No |
Name |
Technical Data |
| 1 |
Capacity |
200Kg/24h |
| 2 |
Refrigerant |
R404a |
| 3 |
Cooling ways |
air cooled condenser |
| 4 |
Supply voltage |
220V/1Phase/50Hz |
| 5 |
Supply cross-section |
6mm²Cu |
| 6 |
Compressor |
Brand name |
full-hermetic type compressor Aspera |
| quantity |
1 Set |
| Power |
1.5HP |
| 7 |
Flake ice |
Thickness |
1.5~2.0mm |
| Temp |
-2℃~-1℃ |
| 8 |
Flake ice machine size |
1420mm(L)*800mm(W)*1020mm(H) |
| 9 |
Evaporating temp |
-20℃ |
| 10 |
Condensed temp |
50℃ |
| 11 |
Input water temp |
21℃ |
| 12 |
Cooling capacity |
1.8KW |
| 13 |
Evaporator |
Type |
Drum type |
| Material |
Carbon steel chrome |
| Quantity |
1 piece |
| 14 |
Ice machine type |
Mechanical type for defrost system |
| 15 |
circulating pump power |
0.08KW |
| Reducer motor power |
0.18KW |
| Air cooling condenser power |
0.12KW |
Supply Power: 380V~420V, 50Hz/60Hz, 3P; 220~240V, 60Hz, 3P; 440V~480V, 60Hz, 3P
Standard Working Conditions: Input Water Temperature: 21℃;& Condensing Temperature: 40 ℃ Evaporating Temperature: -20 ℃
As the technology is rapidly developing, some of the above specifications can be changed without notice.
