Working Conditions for Flake Ice Machine KP300:
| 1. Max. Ambient temp. |
+40℃ |
| 2.Relative humidity |
60%~80% |
| 3.Standard input water temp |
21℃ |
| 4.Power supply |
380V/3Phase/50Hz |
| 5.Refrigerant |
R22 |
| 6.Compressor type |
Semi-hermetic piston compressor |
| 7.Cooling system |
water cooling condenser |
Technical Parameters for Flake Ice Machine KP300:
| No |
Name |
Technical Data |
| 1 |
Capacity |
30000Kg/24h |
| 2 |
Refrigerant |
R22 |
| 3 |
Cooling ways |
Water cooled condenser |
| 4 |
Supply voltage |
380V/3Phase/50Hz |
| 5 |
Supply cross-section |
40mm²Cu |
| 6 |
Compressor |
Brand name |
Semi-hermetic type compressor Bitzer |
| Type |
6FE-44 |
| quantity |
3Sets |
| Power |
44HP*3=132HP |
| 7 |
Flake ice |
Thickness |
1.5~2.0mm |
| Temp |
-2℃~-1℃ |
| |
Measure |
Flake ice machine |
5850mm(L)*2100mm(w)*2500mm(H) |
| Cooling tower |
2145mm(L)*2145mm(W)*2035mm(H) |
| 11 |
Evaporating temp |
-20℃ |
| 12 |
Condensed temp |
40℃ |
| 13 |
Input water temp |
21℃ |
| 14 |
Control system |
PLC micro-computer control PLC with touch screen |
| 15 |

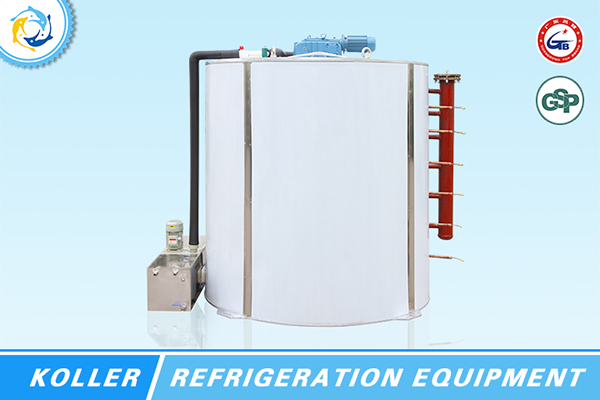

Evaporator drum |
Type |
Drum type |
| Material |
Carbon steel chrome |
| Quantity |
1 piece |
| 16 |
Ice machine type |
Mechanical type for defrost system |
| 17 |
Compressor power |
99KW |
| circulating pump power |
0.4KW |
| Reducer motor power |
0.75KW |
| Water pump power |
7.5KW |
| Cooling tower motor power |
2.2KW |
Components list for Flake Ice Machine:
| Item |
Name of Components |
Quantity |
Brand Name |
Original of Country |
| 1 |
Compressor |
3 |
Bitzer |
Germany |
| 2 |
Evaporator drum |
1 |
Koller |
China |
| 3 |
water cooling condenser unit |
1 |
Koller |
| 4 |
PLC Program control PLC |
1 |
Siemens |
Germany |
| 5 |
Touch Screen |
1 |
Wecon |
Taiwan |
| 6 |
Solenoid valve |
|
Castal |
Italy |
| 7 |
Electrical components |
|
Siemes & LS |
Germany & South Korea |
| 8 |
Dry filter |
2 |
Danfoss |
Denmark |
| 9 |
Circulating water pump |
1 |
Xishan |
China |
| 10 |
Phase Protector |
1 |
Carlo Gavazzi |
Italy |
| 11 |
Expansion Valve |
6 |
Danfoss |
Denmark |
| 12 |
Sight glass |
1 |
Danfoss |
Denmark |
| 13 |
Oil separator |
1 |
D&F |
China |
| 14 |
Cooling tower |
1 |
KC |
China |
| 15 |
Cooling water pump |
1 |
YL |
Taiwan |
| 15 |
Single way valve |
3 |
Danfoss |
Denmark |
Free Spared parts for KP300 Flake Ice Machine:
| KP300 flake ice machine |
| Name |
Quantity |
Brand name |
Specification |
| Solenoid valve coil |
2pieces |
Danfoss |
|
| Dry filter cartridge |
2pieces |
Alco |
D-48 |
| Button |
1 piece |
|
AS2201-01 R |
| Button |
1 piece |
|
AS2201-10/G |
| Sensor |
2 pieces |
|
|
| Ice spader |
1 piece |
Koller |
|
Ice Bin For KP300 Flake Ice Machine Information:
| Item |
Name |
Specification |
| 1 |
Ice bin size |
6000mm*3000mm*2000mm |
| 2 |
Material for ice bin |
Colorbond painted steel cold room panels |
| 3 |
Ice bin door |
800mm*1600mm with hinged type |
| 4 |
Flake ice machine's supporting table |
Steel with painting |
| 5 |
Ice bin's inlet |
Worked with KP300 |
Supply Power: 380V~420V, 50Hz/60Hz, 3P; 220~240V, 60Hz, 3P; 440V~480V, 60Hz, 3P
Standard Working Conditions: Input Water Temperature: 21℃;& Condensing Temperature: 40 ℃ Evaporating Temperature: -20 ℃
As the technology is rapidly developing, some of the above specifications can be changed without notice.
