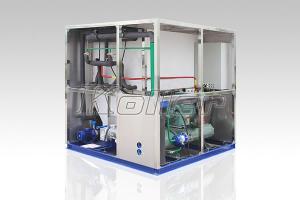

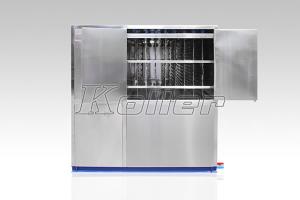

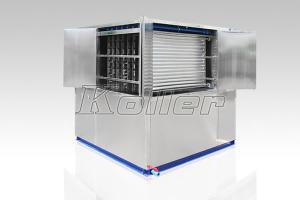

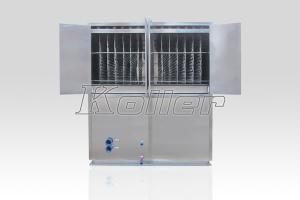

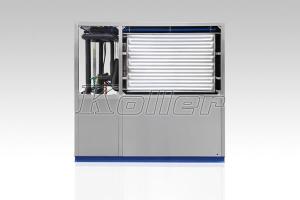

1. Simple Description
1. Capacity: HYF100 plate ice machine can make 10 tons of ice in 24hours.

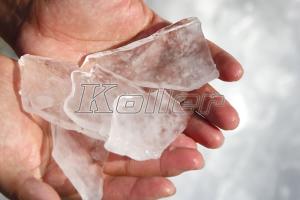

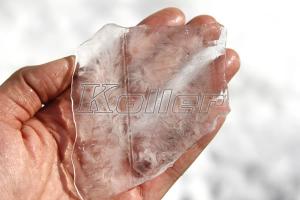

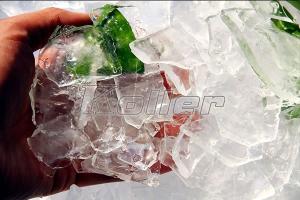

2. Ice thickness: 5mm to 30mm. Our customers can flexibly adjust its thickness according to their requirements.
3. Freezing time: 14 minutes.
4. Production: the plate ice machine will produce 98kg every 14minutes, and freeze 4times in one hour, so it will produce 420kg in one hour.
5. Cooling system: Water cooling system.
6. Specification
Plate ice machine: 2350mm * 2230mm * 2340mm
Cooling tower: 2145mm*2145mm*1955mm
2. Performance Parameter of HYF100 Plate Ice Machine
| Basic Information | ||
| 1 | Name | Plate Ice Machine |
| 2 | Model | HYF100 |
| 3 | Minimum quantity | 1 unit |
| 4 | Daily output | 10 tons (10,000kg) |
| 5 | Weight | 2200kg |
| 6 | Control system | PLC micro-computer control |
| 7 | Ice temperature | -2℃ |
| 8 | Material of framework structure | Stainless steel 304 |
| Compressor Unit | ||
| 1 | Type | Semi-hermetic piston compressor |
| 2 | Brand name | Bitzer/ Copeland / REFCOMP |
| 3 | Power | 50HP |
| Cooling Tower | ||
| 1 | Cooling tower motor | 1.5KW |
| 2 | Cooling water pump | 4KW |
| 3 | Cooling air volume | 420CMM |
| 4 | Cooling water flow | 46.8 m3/h |
| 5 | Water consumption of cooling tower | 0.05 m3/h |
| 6 | Power of circulating water pump | 3KW |
| Evaporator Unit | ||
| 1 | Type | Falling film plate |
| 2 | Measurements | 1.2m*0.8m |
| 3 | Quantity | 14 pieces |
| 4 | Material | stainless steel 304 |
